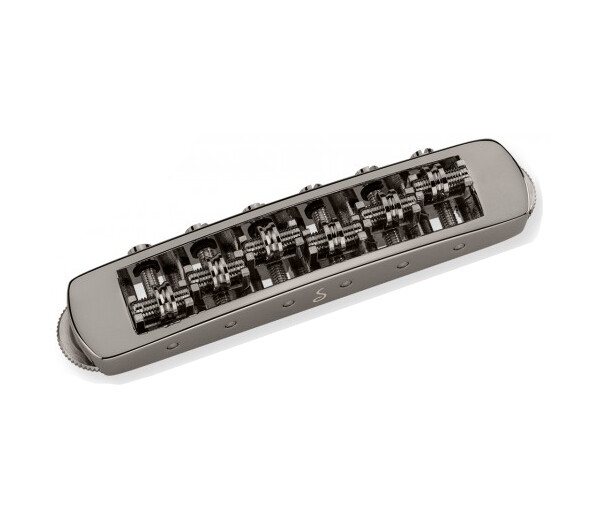

Schaller STM Electric Guitar Roller Bridge - a high quality roller saddle bridge!
Compatible with post spacings from 74.0 - 74.5 mm
Adjustable for height, intonation and string spacing
Low-friction roller saddles for excellent tuning stability – perfect for Bigsby™ vibratos
Comes with 2 different type saddle rollers to suit tone and string bending requirements: wide flat rollers for low strings and tight U-shaped for high strings
Solid brass roller saddles
Available Finishes: Nickel-plated, Chrome-plated, Black Chrome-plated, Gold-plated and Ruthenium-plated
Made in Germany
What's Included: 1 × STM series roller saddle fixed electric guitar bridge in your choice of finish color 2 × Press-in M7 bushings 2 × M5 height-adjustment screws Technical specifications:
Distance between height adjustment screws: 74 - 74.5mm
String spacing (E/e): 48.5mm-57.5mm
Individual string spacing: 9.7 - 11.5mm
String radius 12”-14” (usable for fretboard radius 10”-16”)
Minimal G/d string height above body: 12.5mm
Maximum string gauge: .052”
Weight 58g (90g with accessories)
